High-Brightness Fiber-Coupled White light source

Introduction

Prizmatix HB-FC-White series of High-Brightness fiber-coupled light sources are designed especially for OEM illumination applications in life science instrumentation, machine vision, and other application requiring high brightness fiber coupled light source. The HB-FC-White housing is self-contained light source including all necessary driver electronics and thermal management, no special controller box is required to operate the module if used at preset power

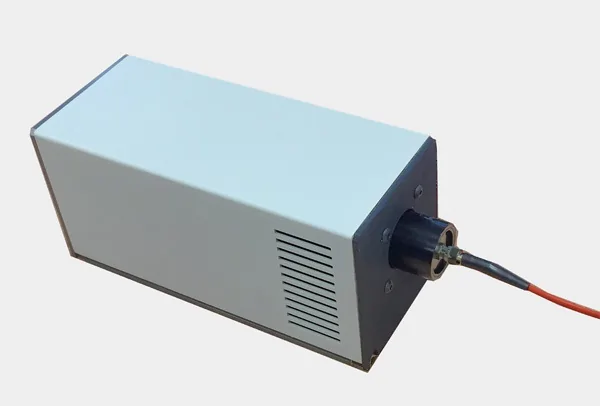

HB-FC-White


  Click picture to enlarge


Key features:

  • Single chip High Brightness Cool-White light source
  • High power white light from small core fiber
  • Simple integration for OEM
  • Isolated TTL and Analog Input
  • Optional Fast TTL switching (200ns Rise / Fall time)
  • Low optical noise
  • Optional Remote Controller for Power and ON/OFF control
  • Optional control from computer via USB or RS232
  • Remote control by I²C protocol for OEMs

  Click picture to enlarge



Applications:

  • Illumination through very small apertures
  • Bio-instrumentation

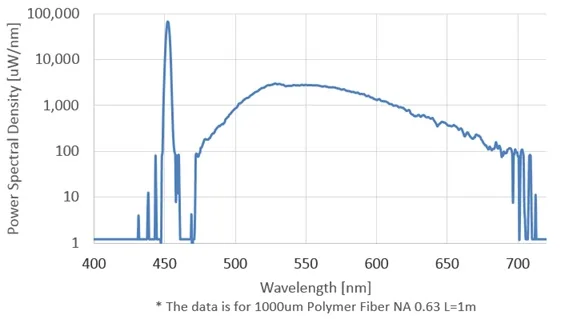

Optical Specifications

Wavelength Cool-White Light
Output power from 1000um fiber NA=0.63, L=1m mW 460
Output power from 500um fiber NA=0.63, L=1m mW 245
Output power from 250um fiber NA=0.66, L=1m mW 110
Output power from 50um fiber NA=0.2, L=1m mW 0.5

HB-FC-White


Electrical Specifications:

Digital modulation (TTL Input) Hz DC-30000
Analog modulation (Analog Input) Hz DC-100
Analog power control % 0-100
ON/OFF   Power switch or by TTL signal
Input Voltage (Float) V 12

General Specifications:

Operation temperature range 0C 10-35
Storage temperature range 0C -10-55
Operative relative humidity (Non condensing) % <90
Dimensions See drawing below
Head weight g 750

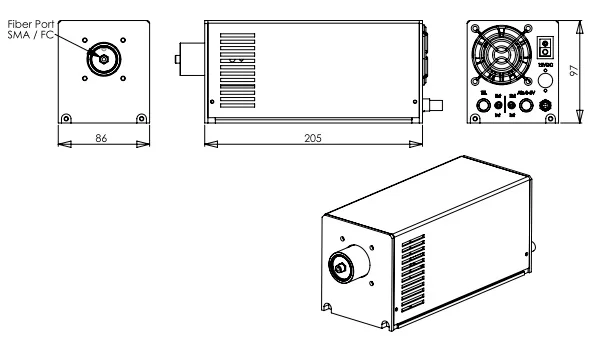

Mechanical drawings

 UHP-F-LED_Drawing

Ordering Information



Item Description

P/N

Fiber-Coupled High-Brightness light source for spectroscopy and various specialty illumination applications.
XX - Please specify output connectror SMA or FC.
Power adaptor is included.
Optical Fiber not included - see below.
RemCTRL not included - see below.

HB-FC-Cool-White-XX

Fiber-Coupled High-Brightness light source for spectroscopy and various specialty illumination applications.
FP - Fast Pulse, TTL input accept fast pulses up to 1us pulse
at low repetition rate (200ns Rise/Fall time).
XX - Please specify output connector SMA or FC.
Power adaptor is included.
Optical Fiber not included - see below.
RemCTRL not included - see below.

HB-FC-Cool-White-FP-XX

High NA Optical Fibers:

  • Core: 100um / 200um / 250um /500um / 1000um.
  • NA: 0.5 or NA: 0.63.
  • Length: 0.2m - 2m.
  • Connectors: SMA or FC.

Please specify requirements

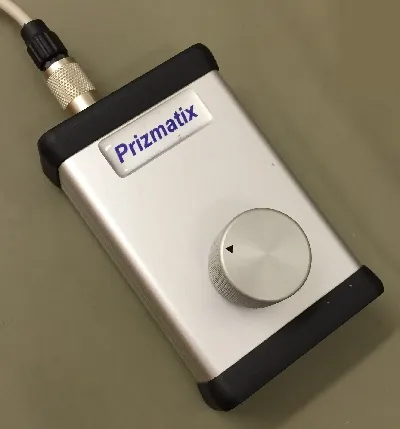

Optional wired remote control unit for manual control of the HB-FC illuminator. Cable included.

RemCTRL

USB interface to control HB-FC-White from Windows software like uManager etc. LabVIEW, Python and other example control code is available. Cable included.

HB-FC-USB

RS232 interface to control HB-FC-White from Windows software like uManager etc. LabVIEW, Python and other example control code is available. Cable included.

HB-FC-RS232

Ø1 inch Fiber collimator for High NA fibers up to NA=0.53.

FCM1-0.5

Ø0.5 inch Fiber collimator for High NA fibers up to NA=0.53.

FCM05-0.5

Ø1 inch Fiber collimator for High NA fibers up to NA=0.63.

FCM1-0.6

Ø1 inch Focuser to be used with FCM1-0.X fiber collimator. Please specify requirement.

FOC1
