The UHPTLCC controllers compatible with any of the five product lines of Prizmatix Ultra-High-Power collimated LEDs: UHP-T-EP, UHP-T-SR, UHP-T-DI, UHP-T-LA and UHP-T-MP.

The UHPTLCC controllers compatible with any of the five product lines of Prizmatix Ultra-High-Power
             collimated LEDs: UHP-T-EP, UHP-T-SR, UHP-T-DI, UHP-T-LA and UHP-T-MP.

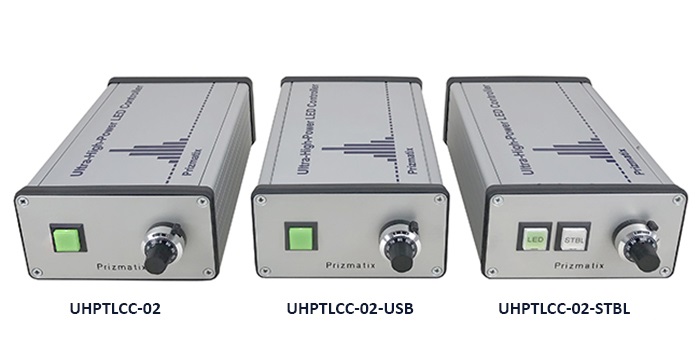

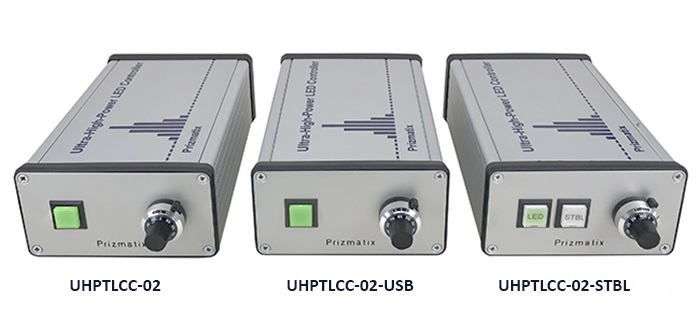

 UHPTLCC-02  UHPTLCC -02-USB  UHPTLCC-02-STBL
Basic:
Analog LED controller for basic  control functions.
USB Computer Interface:
Digital LED controller enabling control from computer via USB and power monitoring by digital photodiode.

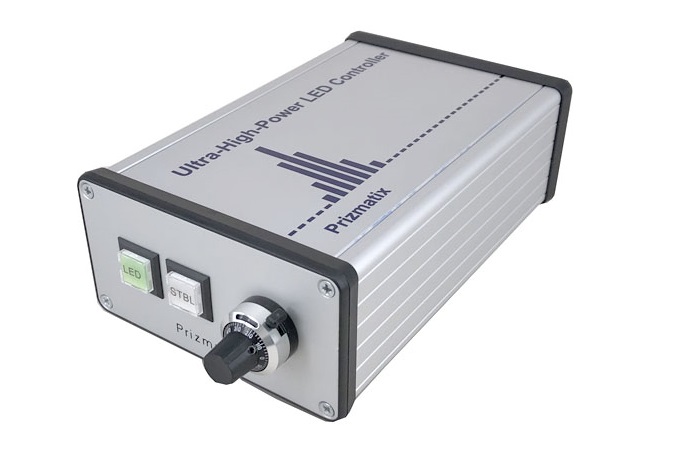

Stabilized:
Digital controller with power stabilization by photodiode and PID algorithm.

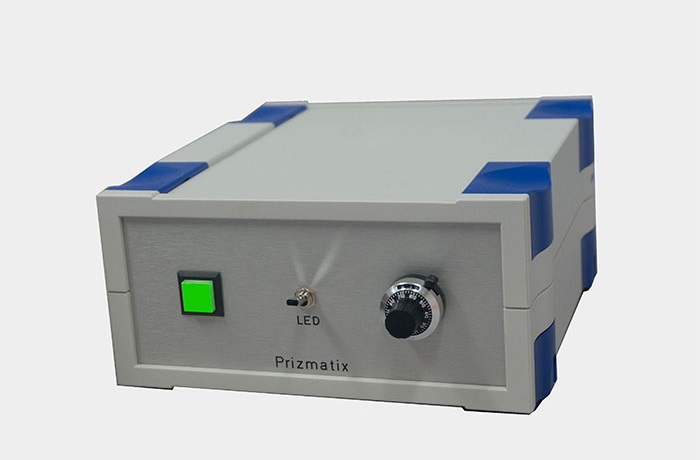

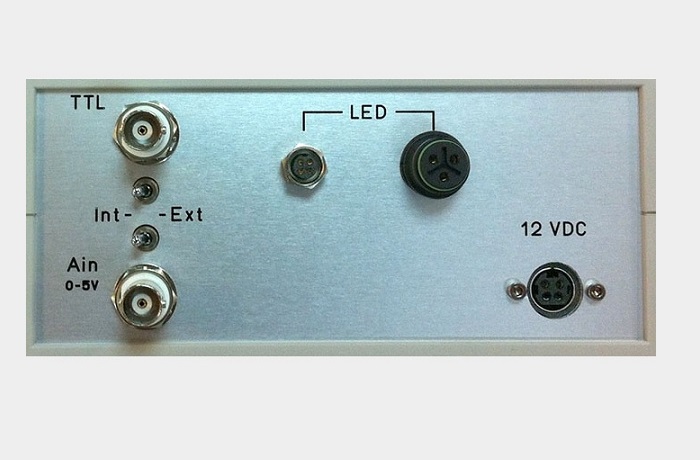

Remark: UHPTLCC-02 is advanced version of UHPTLCC Legacy controller.

Any UHP-T series LEDs can be used with any UHPTLCC-02 series controller. Advanced high current driver is embedded within the shielded LED head, not in the controller box. The UHPTLCC-02 controller contains all control interfaces and functions.
This split arrangement allows direct mounting of LEDs on sensitive equipment while eliminating virtually all RFI / EMI interference common in high current light sources.

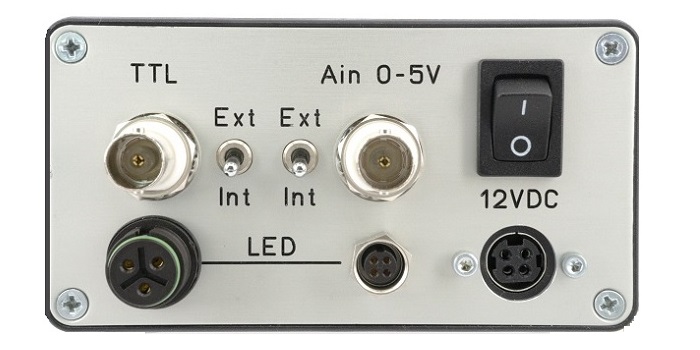

All BNC connectors for TTL and Analog inputs are Optically Isolated to prevent ground loops interference at data recording.

Features


UHPTLCC-02 UHPTLCC-02-USB UHPTLCC-02-STBL
LED Power Control
 10 turn potentiometer with  dial and latch
 Analog Circuitry X X
 Digital 12Bit DAC (4096  steps) X
 Computer Control, on/off &  power level X
 Logging and plotting of  digital photodiode  measurements X
 PC software control by 3rd  party software (Matlab,  uManager, LabVIEW)  ASCII Terminal Commands X
 Application programming  interface (API) for
 LabVIEW, MATLAB, Python,  VB, C++ and others are  available
X
 Reference Photodiode (on  LED head) X Optional Required
Control Inputs
UHPTLCC-02 UHPTLCC-02-USB UHPTLCC-02-STBL
 Opto Isolated TTL Input
 Light On/Off Control
 Opto Isolated Analog Input
 Light intensity Control
 (0-5V)
X X

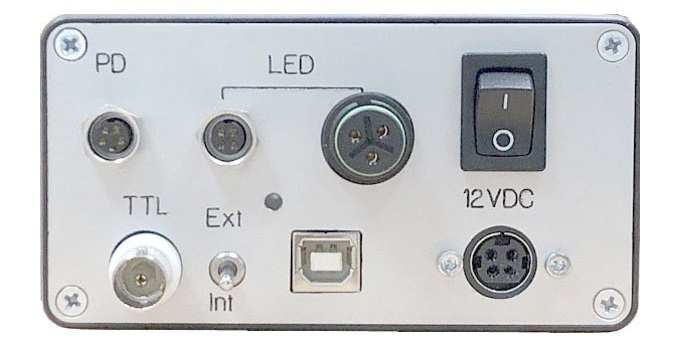

 USB Input (Type B) X
 Reference Photodiode  input X
 LED Power Stabilization X X
 Ultra-Low-Noise Option Not in stabilized mode

Remarks:

(1) Optically Isolated TTL input levels are:

(2) Analog Input (0 to +5V) can be useful for LED power control from external DAC such as      NI-USB-6001.


General Specifications

 Operation temperature range °C 10-35
 Storage temperature range °C -65
 Operative relative humidity (Non-condensing) % <90
 UHPTLCC-02 dimensions See drawing below
 UHPTLCC-02 weight g 430
 Power Adaptor Dimensions (L x W x H) mm 167 x 67 x 35
 Power Adaptor Safety


Drawings

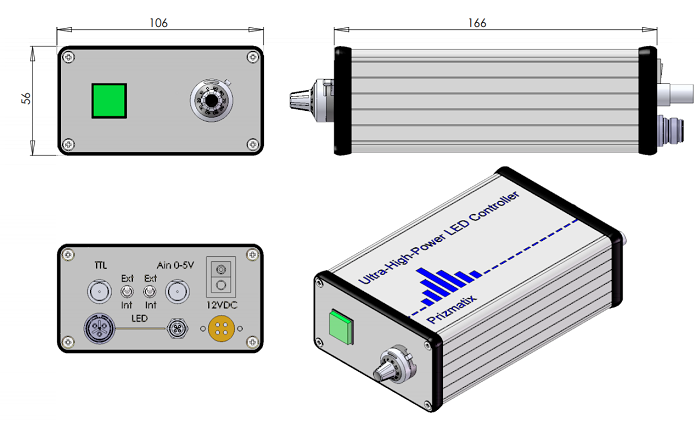

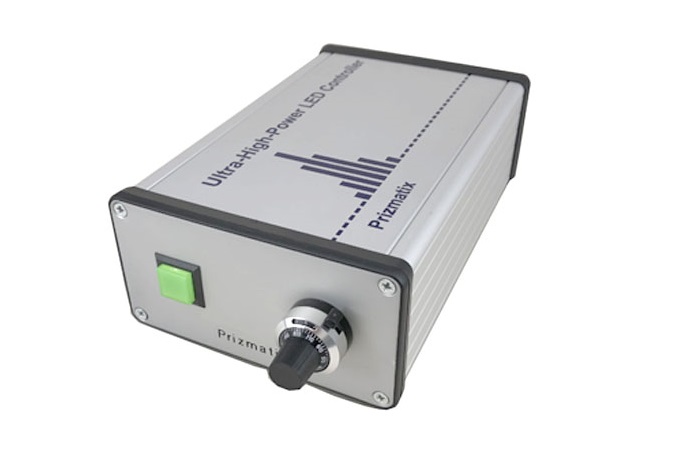

UHPTLCC-02: Analog LED Controller

UHPTLCC-02: Analog LED Controller Drawing

Click to see more

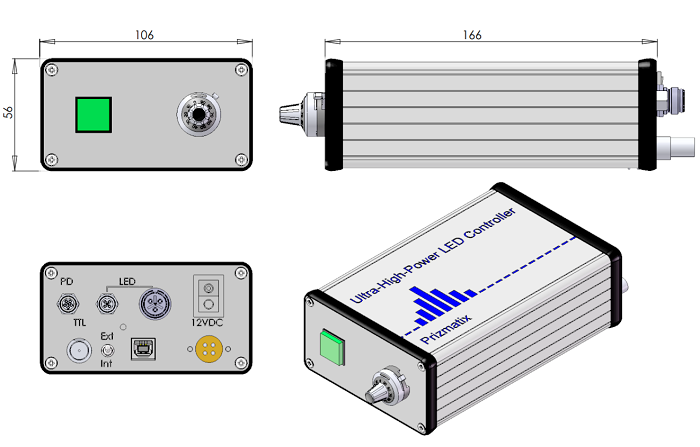

UHPTLCC-02-USB: Digital LED Controller

UHPTLCC-02-USB: Digital LED Controller Drawing

Click to see more


UHPTLCC-02-STBL: Digital LED Controller with Power Stabilization

UHPTLCC-02-STBL: Digital LED Controller with Power Stabilization Drawing

Click to see more
