Prizmatix UHP-F-LED series of Ultra High Power LED (up to 70Watt)  light-guide coupled light sources was designed especially for microscopy and OEM illumination applications in life science instrumentation, machine vision, confocal microscopy and many others.
The UHP-F-LED housing is self-contained liquid lightguide LED source including all necessary driver electronics and thermal management, no special controller box is required to operate the module if used at maximum power.
The device features opto-isolated TTL and Analog input for convenient control of fast pulsing (strobe applications) and output power. The device has I2C input for easy power control (12 Bit DAC) from microcontroller.

    UHP-F-LED

YouTube video: Unboxing Prizmatix UHP-F-LED YouTube video: Unboxing Prizmatix UHP-F-LED.


UHP-F-LED - Liquid Lightguide Coupled LED
Click picture to enlarge

Key Features:

  • Ultra High Power LED
  • Shielded LED head with high current driver, low RFI/EMI
  • Optically isolated TTL input for external triggering or strobe operation
  • Optically isolated Analog input (0-5V) for LED power control by an external device like D/A
  • Computer control via USB from Windows / Mac / RaspberryPI.
  • API and code examples available for LabVIEW, LabWindows/CVI, C++, Python, and others.
  • Stable precisely adjustable power.
  • Long life.
  • Low optical noise (Optional).
  • Simple integration for OEM.
CTRL-F Manual Control Unit
Click picture to enlarge

Applications:



Optical Specifications

Product P/N Total Power [mW] Normalized Value [a.u.] Bandwidth Power[mW]


Center [nm] Width [nm]

a.u.
μW/nm
Wavelength (nm)



UHP-F-LED Control Options

Prizmatix offers several types of control options for the UHP-F-LED. The standard product can be used without any external device simply by switching the main switch the LED will operate at maximum power (see Configuration A below).

The standard product has TTL and Analog Inputs, both opto-isolated. These inputs can be used for creation of fast pulses and for power control (see Caonfigurations B, C below).

The CTRL-F control unit enable convienent manual control of UHP-F-LED power from maximum to off (see Configuration D below). For control of the power from computer we offer UHP-F-USB a small interface box which enables Windows or Mac to control the light source over USB. Software is freely avalible at Prizmatix website. API is availie upon request (see Configuration E below).

CTRL-F Manual Control Unit
Click to enlarge

The CTRL-F and UHP-F-USB can be connected in chain so user can operate the LED manaully and from computer without a need to disconnect and reconnect cables (see Configuration F below).

If UHP-F-LED need to operate in Pulsed mode the Fuction Generator can be used with any of describer power control options, so the intensity of the pulses can be controller through CTRL-F or UHP-F-USB or eben by Analog input. (as example see Configuration G below).


Configuration A:

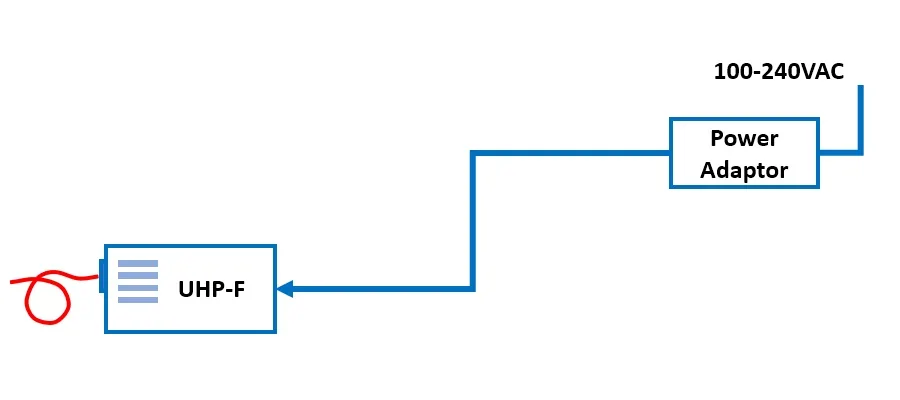

Basic On/Off - mimics the standard lamp. The UHP-F will work at maximum current.

UHP-M

Configuration B:

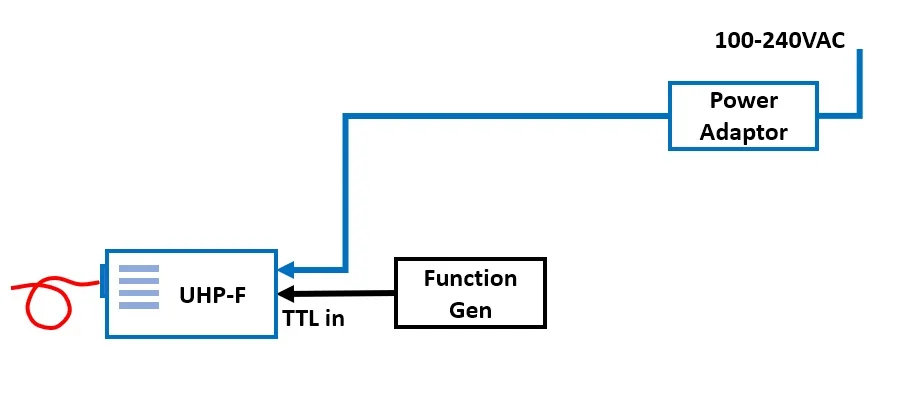

Additionally, to configuration A: a Function generator can be connected to the TTL input of UHP-F to create fast pulses.

UHP-M

Configuration C:

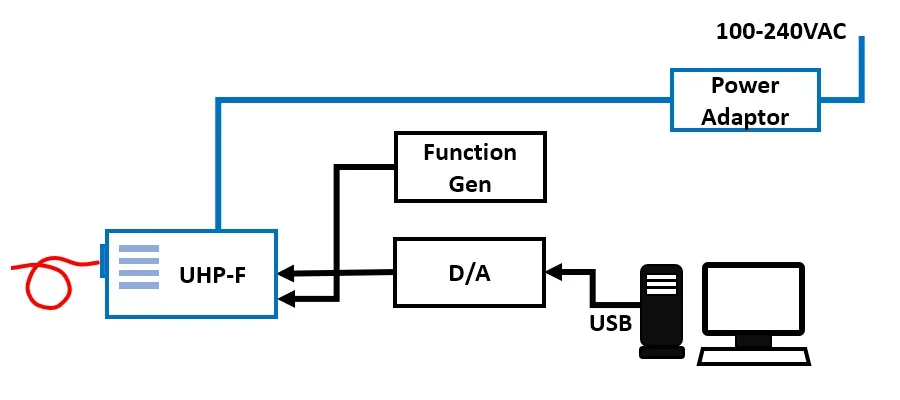

Additionally, to configuration B: The LED current can be controlled through an Analog Input BNC connector. The analog signal can be, for example, from a USB D/A module.

UHP-M

Configuration D:

The LED current can be manually controlled through CTRL-F. A small, wired console with a potentiometer that sends I2C control signals to the UHP-F

UHP-M

Configuration E:

The LED current can be controlled from a computer by UHP-F-USB interface. Control software for PC or Mac is provided. API is available upon request.

UHP-M

Configuration F:

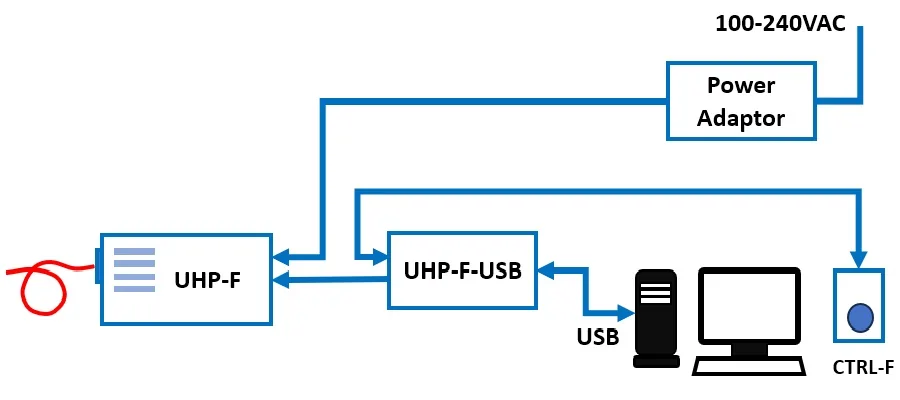

Configurations D and E can be combined to create versatile control. Manual and computerized at the same time.

UHP-M

Configuration G:

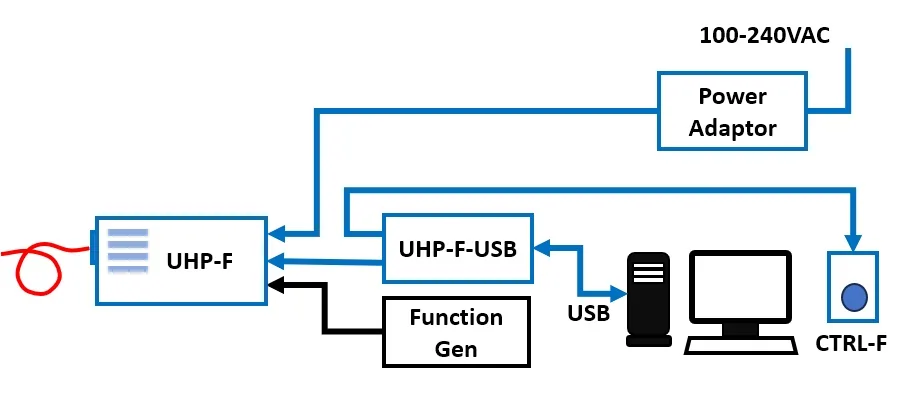

Additionally, to configuration F: a Function generator can be connected to the TTL input of UHP-F to create fast pulses.

UHP-M


Electrical Specifications:

Digital modulation (TTL Input) Hz DC-30000
Analog modulation (Analog Input) Hz DC-100
Analog power control % 0-100
ON/OFF   Power switch or by TTL signal
Supply voltage V 12
Power adaptor input   85-264 VAC, 47-63Hz, 1.5A

General Specifications:

Operation temperature range 0C 10-35
Storage temperature range 0C -10-55
Operative relative humidity (Non condensing) % <90
Dimensions See drawing below
Head weight g 750
Power adaptor dimensions
(L x W x H)
mm 167 x 67 x 35
Power adaptor weight g 590
Power adaptor safety

Mechanical Drawings


UHP-F-LED_Drawing

Remarks:

  • LLG Port is designed for Prizmatix standard light-guides.
  • For more information see Ordering Information below and Prizmatix Liquid light-guide.
  • LLG port and mounting options may vary according to customer's specifications.
  • Specifications subject to changes without notice.

Ordering Information

Item Description P/N

Ultra-High Power LED for 3mm light-guide (LLG-3) for microscopy and various illumination applications.

Please specify wavelength or
WDH - for High CRI White 5700K
WCS - for White 6500K,
WDS - for White 5665K,
WSS - for White 8500K
HCRI - for White HCRI 5700K,
W57 - for White 5700K,
W65 - for White 6500K,
Power adaptor is included

Compatible only with Prizmatix LLG-3 (not included), see below.
RemCTRL not included - see below

UHP-F-3-WL

(WL - See the full list of the available wavelengths in the table above)

Ultra-High Power LED for 5mm light-guide (LLG-5) for microscopy and various illumination applications.

Please specify wavelength or
WDH - for High CRI White 5700K
WCS - for White 6500K,
WDS - for White 5665K,
WSS - for White 8500K
HCRI - for White HCRI 5700K,
W57 - for White 5700K,
W65 - for White 6500K,
Power adaptor is included

Compatible only with Prizmatix LLG-5 (not included), see below.
RemCTRL not included - see below

UHP-F-5-WL

(WL - See the full list of the available wavelengths in the table above)

Prizmatix Light-guide. Core diameter 3mm.
Tip dimensions: OD=ø5mm, L=20mm

LLG-3

Prizmatix Light-guide. Core diameter 5mm.
Tip dimensions: OD=ø7mm, L=20mm

LLG-5

Optional wired remote control unit for manual control of the UHP-F illuminator.
Cable included.

CTRL-F

USB to UHP-F interface box.
Enables UHP-F to work with Windows control software (supplied with the product).
Compatible with Windows based software like MetaMorph, Micro-Manager, LabView, Matlab, and other software that can send HyperTerminal commands.

UHP-F-USB

RS232 interface box.
Enables UHP-F to work with Windows based software via RS232 link.

UHP-F-RS232

Collimator for 3mm core liquid light-guide (LLG-3). 1 inch output. No XY adjustment.

LLG3-CM1

Collimator for 5mm core liquid light-guide (LLG-5). 1 inch output. No XY adjustment.

LLG5-CM1

Collimator with XYZ adjustment for LLG-3 light-guide.
Please specify N for Nikon / O for Olympus / Z for Zeiss / L for Leica microscope type

LLG3-CXYZ-Type

(Type = N / O / Z / L)

Collimator with XYZ adjustment for LLG-5 light-guide.
Please specify N for Nikon / O for Olympus / Z for Zeiss / L for Leica microscope type

LLG5-CXYZ-Type

(Type = N / O / Z / L)
