 Fiber Coupled Broadband White LED
Light Source for Spectroscopy

 Introduction

The FC-BBW-LED Broadband White LED fiber coupled light source features wide emission spectrum from 400nm to 700nm. This wide spectrum is excellent for various reflection and transmission spectroscopy applications as well as color measurements. The FC-BBW-LED is a self-contained light source including all necessary driver electronics and thermal management, no special controller box is required to operate the module except a DC power adaptor.

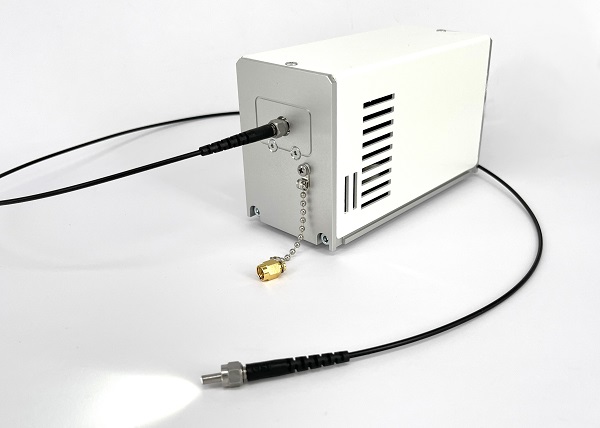

UHP-T-LED-White FC-BBW-LED

            Click picture to enlarge




 Optical Specifications

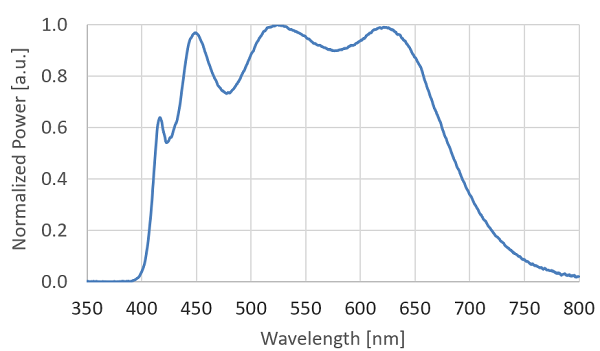

                                                Spectrum of FC-BBW-LED

                                                (Click picture to enlarge)



 Typical optical power from distal end of 1m fiber:


Fiber Type Fiber Core Fiber NA Output Power
Silica 50µm 0.2 4.5µW
Silica 200µm 0.22 180µW
Glass 200µm 0.66 650µW
Glass 250µm 0.66 1.3mW
Polymer 250µm 0.5 800µW
Silica 400µm 0.37 1.7mW
Polymer 1000µm 0.5 12mW
Polymer 1000µm 0.63 14mW

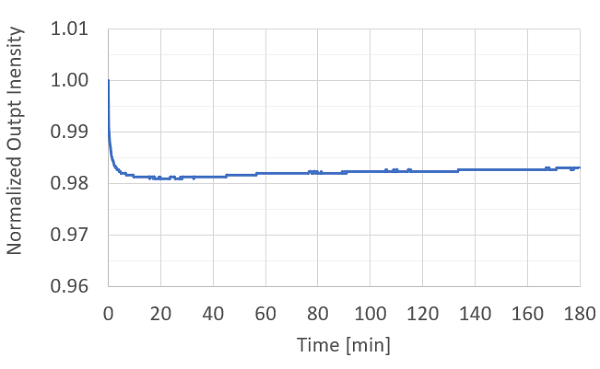

                                                Stability of FC-BBW-LED

                                                (Click picture to enlarge)





 Electrical Specifications


Input Voltage Vdc 12
Power Adaptor Input   100-240 VAC, 50/60Hz, 0.7A




 General Specifications

Operation temperature range °C 10-35
Storage Temperature range °C -10-55
Operating relative humidity
(Non condensing)
% <90
Dimensions (L x W x H)   See drawing below
Head weight g 700
Power Adaptor Dimensions
(Lx W x H)
mm 90 x 53 x 35
Power Adaptor Weight g 190
Power Adaptor Safety

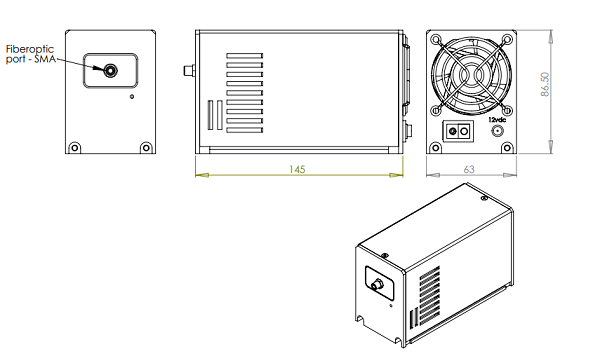

 Mechanical Drawings

* Specifications subject to changes without notice
